120 Electronic Pilot Assembly Lp
120 Electronic Pilot Assembly Lp
Regular price
$246.00 USD
Regular price
Sale price
$246.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

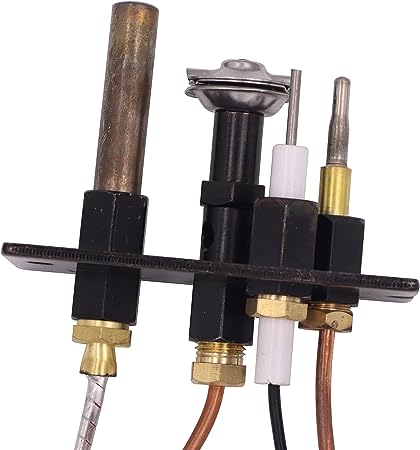

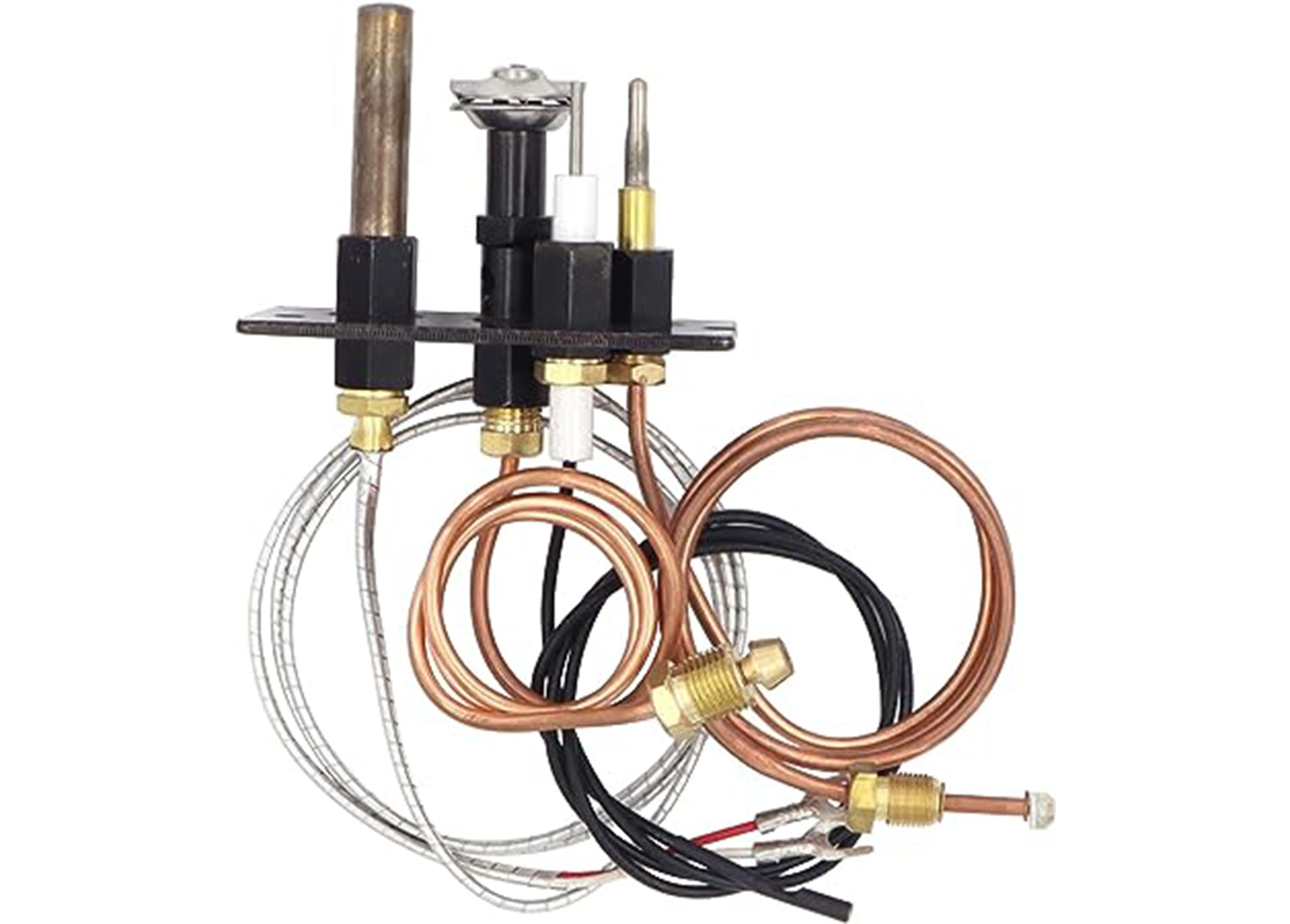

Replace OEM Majestic SIT Pilot - Propane Gas and HHT Pilot Assembly Part 10002264
Used for Majestic, Monessen, Temco, and Vermont Castings Fireplaces and Stoves

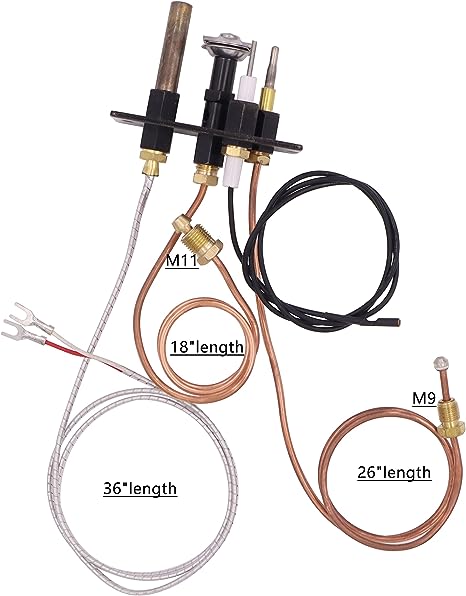

The initial of the assembly set is for propane but we include a free natural nozzle and you can easily change to natural gas if you need Thermocouple length 26", thermopile length 36", copper tubing length 18"
Propane Gas Thermopile Sensor for Replacement fireplace thermopile-compatible with the majority of units. For example water heater, Oven, Fireplace & Stove etc.
Thermopile Extremely durable an Internal resistance (25°C), varies with specifications and length between 1,500 mΩ and 4,500 mΩ.Normal working temperature 700-750°C.
Thermopile Rating: 750 mv. Wire Material: glass fiber wrapping line, metal aluminum envelope, these lines are high-temperature resistance fire line.
Used for Majestic, Monessen, Temco, and Vermont Castings Fireplaces and Stoves
The initial of the assembly set is for propane but we include a free natural nozzle and you can easily change to natural gas if you need Thermocouple length 26", thermopile length 36", copper tubing length 18"
Propane Gas Thermopile Sensor for Replacement fireplace thermopile-compatible with the majority of units. For example water heater, Oven, Fireplace & Stove etc.
Thermopile Extremely durable an Internal resistance (25°C), varies with specifications and length between 1,500 mΩ and 4,500 mΩ.Normal working temperature 700-750°C.
Thermopile Rating: 750 mv. Wire Material: glass fiber wrapping line, metal aluminum envelope, these lines are high-temperature resistance fire line.
